Description
-
INDUSTRY LEADING 3 YEAR WARRANTY
-
COMBO (SYMMETRICAL AND ASYMMETRICAL) ARM ASSEMBLY WITH ADJUSTABLE SCREW PADS!
-
CE CERTIFIED LIFT STRUCTURE AND HYDRAULIC SYSTEM – TESTED 115% DYNAMIC LOAD CAPACITY AND 150% STATIC LOAD CAPACITY
-
ONE SET OF 4″ TALL TRUCK ADAPTERS INCLUDED; 6’9″ LIFT HEIGHT MAXIMUM WITH TRUCK ADAPTERS
-
ALL ROBOT WELDED STRUCTURE WITH DURABLE POWDER COATED FINISH

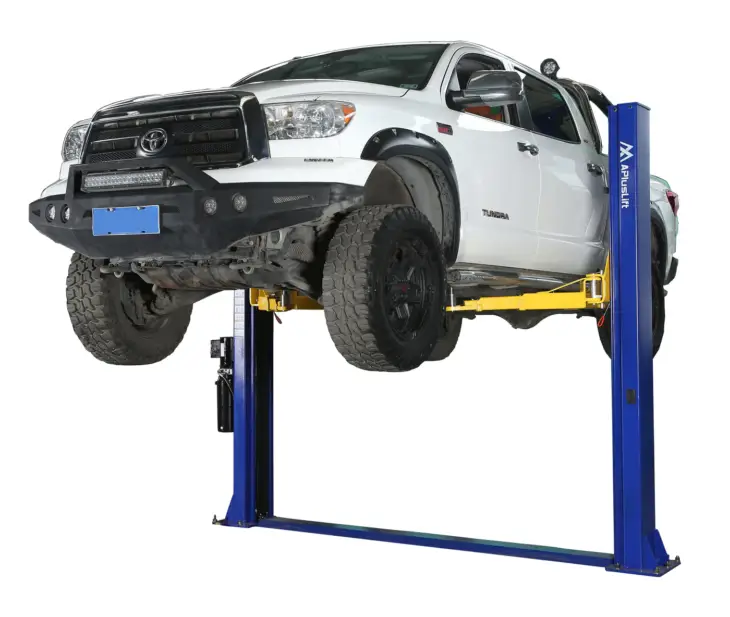

APLUSLIFT HW-10KBP-A CAR LIFT (AUTO HOIST) IS ONE OF THE MOST AFFORDABLE FLOOR PLATE CAR LIFTS BUILT WITH QUALITY MATERIALS AND GOOD WORKMANSHIP. THE LIFT HAS A STRONG DOUBLE “S” COLUMN DESIGN TO SUPPORT 10,000 LB CAPACITY.
SPECIFICATIONS
- Overall Height: 113 5/8″
- Overall Width: 134 5/16″
- Maximum Lift height with Truck Adapters: 81″
- Maximum Lift height without Truck Adapters: 75″
- Minimum Height of Arm Top: 4.5″
- Drive Through Width (Carriage to Carriage): 100″
- Column to Column Width: 109″
- Column Cross Section: 11″L x 7″W
- Floor Plate Cross Section: 10 5/8″W x 1 7/8″H
- Driving Mode: Dual hydraulic cylinders, chain drive
- Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
- Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
- Lifting Capacity: 10,000 LB
- Time to full rise: 50 sec

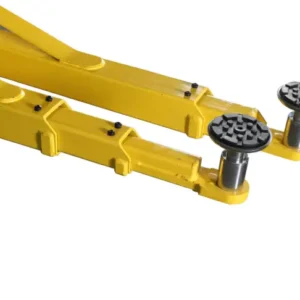

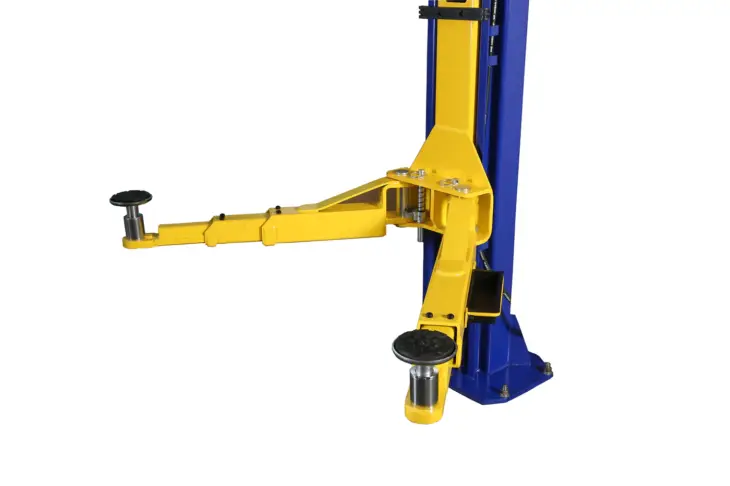

- Combo (Symmetrical and Asymmetrical) Arm Assembly
- Straight Front/Rear 3 Stage reach from 22 7/8″ to 42 5/8″
- Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″
- 4 Pieces of Adjustable Screw Pads Included
- 4 Pieces of 4″ Tall Truck Adapters (Height Extensions) Included
- Shipping Weight: 1,350 LB
- Shipping package size: 113″L x 22″W x 40″H
- Concrete Requirement: 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)
- 10 anchor bolts and 10 shims included
- Tool trays and toe guards included
- Column Steel Thickness: 13/64″
- Carriage Steel Thickness: 15/64″
- Carriage Yoke Thickness: 9/16″
- Arm Steel Thickness: 15/64″
- Base Plate Steel Thickness: 5/8″
FEATURES
- CE Certified Lift Structure and Hydraulic System
- Third party tested with a dynamic load capacity of 115%
- Third party tested with a static load capacity of 150%
- Durable hydraulic system
- Easy to operate and maintain
- Double point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
- Upgraded Floor Plate, Beveled Diamond Plate Steel 5/32″ with Supporting Bracket.
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
Reviews (7)
7 reviews for APLUSLIFT HW-10KBP-A 10,000 lbs 2-Post Floor Plate Heavy Duty Car Lift – 3 Year Warranty
Related products
Sale!
-40%
Two post lifts
Original price was: $5,142.00.$2,085.20Current price is: $2,085.20.
Sale!
-40%
Two post lifts
Original price was: $3,620.00.$1,172.00Current price is: $1,172.00.
Sale!
-40%
Original price was: $4,695.00.$1,317.00Current price is: $1,317.00.
$2,695,001,078.00
Sale!
Original price was: $2,820.00.$764.40Current price is: $764.40.
Sale!
-40%
Original price was: $5,315.25.$1,989.15Current price is: $1,989.15.
Sale!
-40%
Original price was: $4,995.00.$1,500.00Current price is: $1,500.00.
Sale!
-40%
Two post lifts
Original price was: $7,810.00.$2,686.00Current price is: $2,686.00.
Paul Souve –
Great lift
Had mine for over 3 years now never had an issue works like new. Great lift for the money
I have had 2500 HD on it with no issues. I wouldn’t go any higher then that def stay around 8k or less to be safe it’s still a Chinese lift lol
Robert Hifai –
Measure ten times and drill once
Took me two days by myself to install the lift. The directions were a big vague when it comes to syncing the cables. I did drill a rest hole to verify my slab was 5 to 6 inches thick.
It doesn’t come with hydraulic fluid, so plan ahead.
Michele G –
The good, the bad, and the ugly.
The good
The shipping was really fast.
A nice looking unit.
Easy to install. I had at least 6″ of concrete floor to mount it in. The anchors grabbed well. I had to re-tighten a couple after the first lift.
Very nice power unit.
I like the safety release mechanism unlike the other lifts I have where I have to hold the latch release the entire time of lowering the vehicle.
The bad
It claims to be able to do 10,000 lbs, I would not try to lift anything beyond 7,000 lbs. I have a Titan lift that is rated for 9,000 lbs. If this one can 10,000 then my Titan lift can do 20,000.
The ugly
I saw some reviews that said they were concerned when they saw the lift arms flex. I put a 6,500 lb vehicle on it and well yes the arms were flexing. When I had it to it’s upmost position I shook the vehicle and it moved way too much in my opinion. I will end up doing the same thing as a couple of others and use jack stands when doing heavy duty work.
In a nutshell the price is good but the weight lift rating is too high in my opinion.
Breckbordr –
to unload from freight truck. This is a heavy unit and the entire package is bolted to two nice metal legs (re-purposed now as the support legs for my sandblaster, BONUS). If you don’t have a forklift you’ll have to disassemble on the truck and unload each piece with somebody’s. installed in a day and used included bolts with epoxy. Running 250v power was straightforward and adjustment and leveling lift was a cinch. I did have issues the pins not sliding into two of the arms to connect to carriage, but the seller was quick to respond and ship new arms. A+. Don’t even bother shopping around like I did for weeks. Just buy this one. It will do everything you want it to do, but most importantly the seller stands behind his product, unlike the Chinese sellers on the Eleveault automotive.
Richard Patton –
Got it all installed today and working, very sturdy built for sure, everything was straight forward on the install the only thing missing was one nut for the mounting of the pump which is absolutely no big deal, don’t spend thousands for big name just get this one it will surpass the others
W. Mercer –
I am pleased with this lift. I installed it single handedly, without issue. I was a little disappointed with lowering speed
Dave th’ Wave –
A well built heavy duty lift!
Lift was easy to install and performs well.
