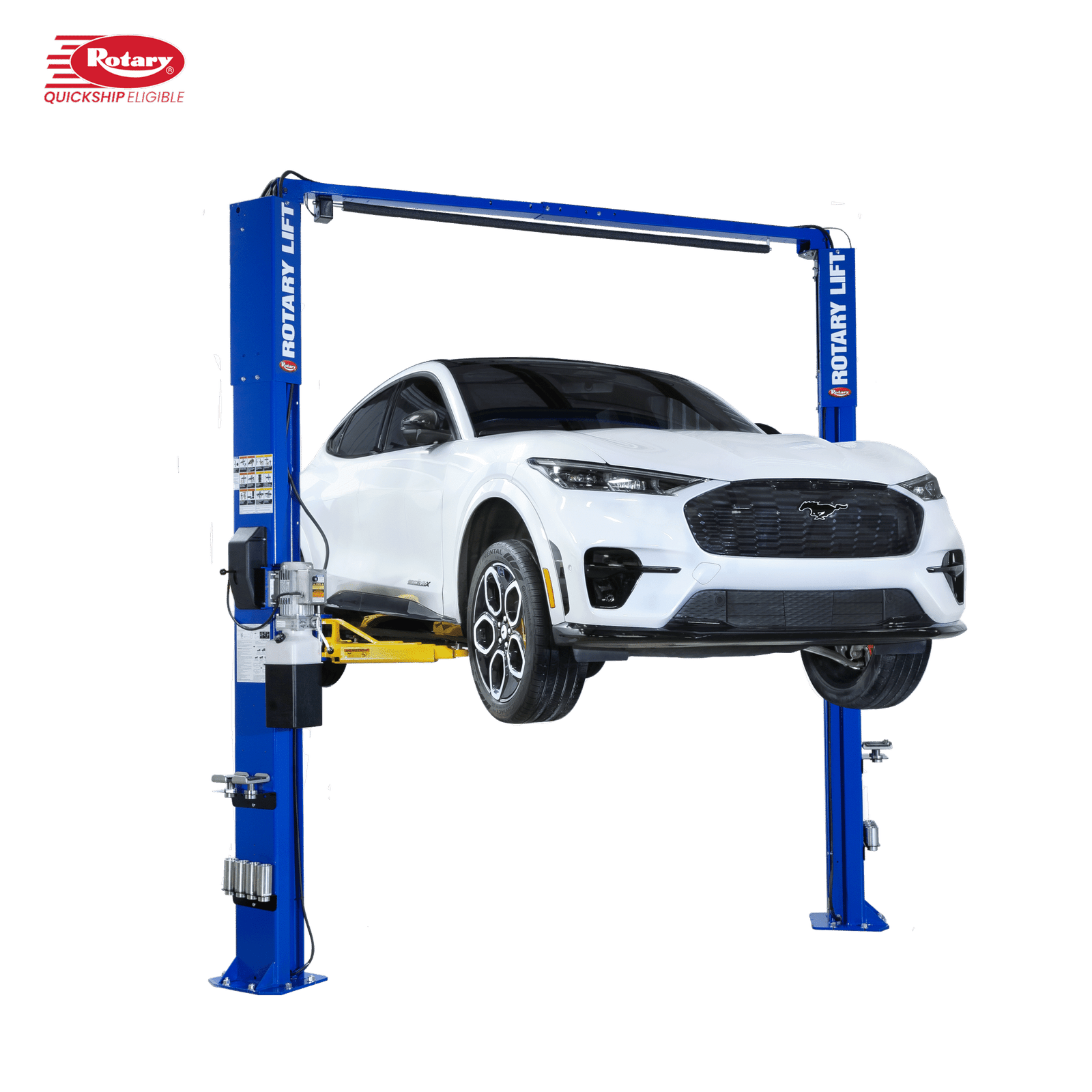

Rotary SPOA10 AV 2HP 10,000 lbs. Asymmetric Turned Column 2-Post Lift

Description
Two-Post Asymmetric Lift with All-Vehicle Lift Arms
Capacity: 10,000 lbs.
Introducing the ONE LIFT to service them all! The next evolution in vehicle lift technology has arrived. Accommodate all vehicle types under 10,000 lbs. with the industry’s original and best-selling asymmetrical lift, now featuring Rotary’s NEW All-Vehicle (AV) Lift Arms.
These revolutionary, patent-pending arms provide technicians the ability to lift and service practically all roadgoing vehicles on ONE LIFT (within the lift’s rated capacity), including:
Battery Electric
Exotic Low Profile
Truck Frame
Unibody Cars & SUVs
Features
3 3/8” minimum adapter height
20% more reach than 3-stage arms with thread-up adapters
30% larger arm sweep than conventional 2-stage arms with flip-up adapters
Comes standard with adjustable round, truck and stackable adapter extensions
Available with SHOCKWAVE™
ALI Gold Certified
Specifications
SPECIFICATIONSBL = Blue  RD = Red
LIFT MODELSALL-VEHICLE ARMSStandard with round & truck adapters
STANDARDPOWER
SPOA10N20M0BLSPOA10N20M0RD
SHOCKWAVEEQUIPPED
SPOA10U20M5BLSPOA10U20M5RD
MAX RISE*    STANDARDSHOCKWAVE
81 1/2″84 1/2″
Overall Height
11′ 11 1/2″with SHOCKWAVE Power: 12′ 5 1/2″
Overall Width
11′ 5 1/2″
Drive-Thru Clearance
95 1/4″
Inside Columns
107 1/4″
Front Arm Reach: Min/Max
18 1/2″ / 41″
Rear Arm Reach: Min/Max
27 5/8″ / 58 1/4″
Min Adapter Height
3 3/8″
Speed of Rise
Standard Power: 45 secondswith SHOCKWAVE Power: 25 seconds**
Speed of Descent
Standard Power: 40 secondswith SHOCKWAVE Power: 19 seconds**
Ceiling Height Minimum
12′ /12′ 6″ with SHOCKWAVE Power
Min. Bay Size
12’x24′
